Nokia Routing Hardware Lab

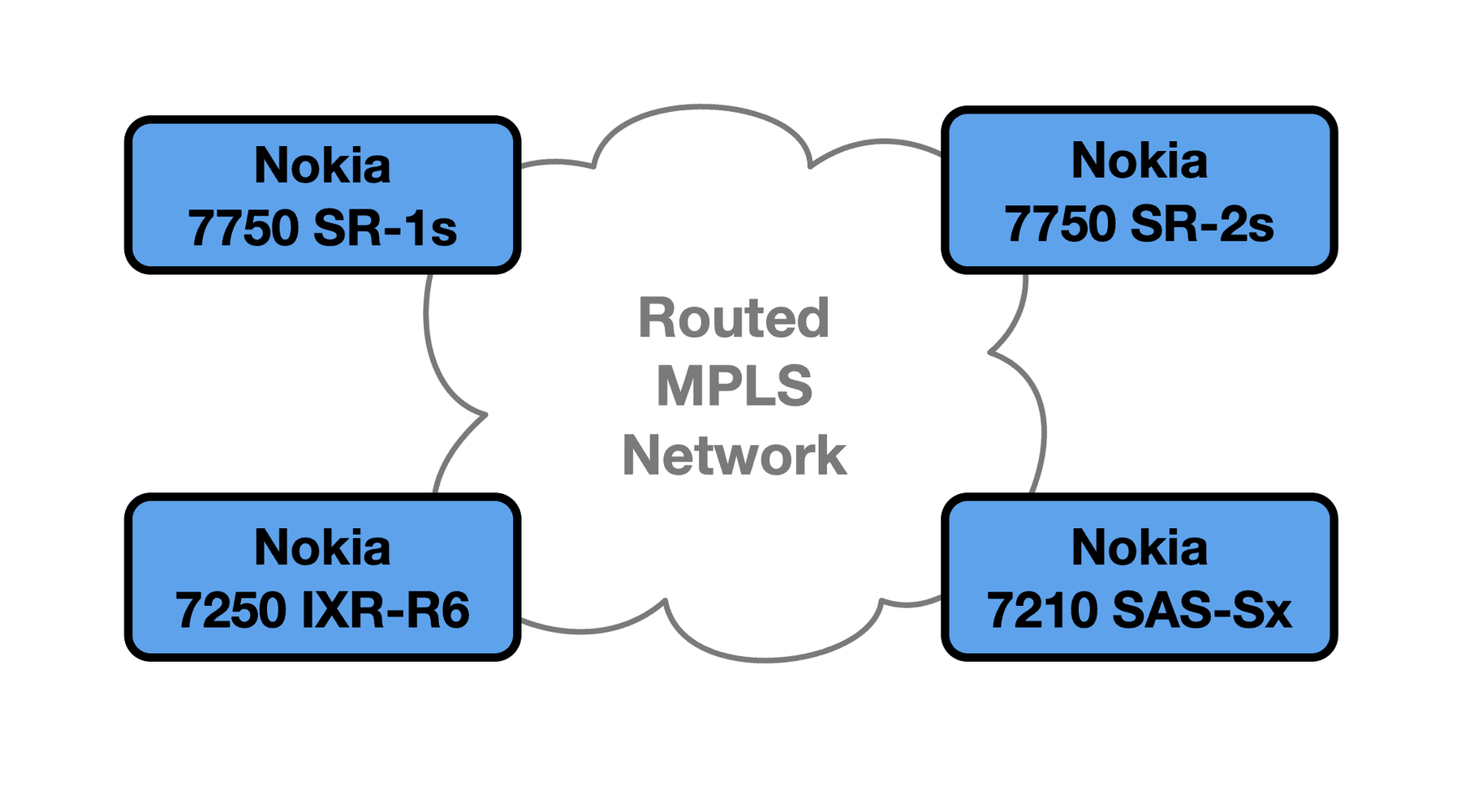

In this lab, you will use various Nokia routing hardware platforms to provision a simple MPLS network. You'll start by provisioning router hardware, then you'll establish IP connectivity and finally you'll implement routing using ISIS with MPLS.

The purpose of this lab is to familiarize the user with Nokia's 7750, 7250 and 7210 routing solutions.

The lab steps include:

• Provision the router hardware, including the processors, line cards and power modules.
• Configure IP connectivity.
• Configure IP routing using ISIS with MPLS.

• Nokia 7750 SR-1s Service Router
  • s36-100gb-qsfp28 line card featuring 36 ports of QSFP28
• Nokia 7750 SR-2s Service Router
  • s18-100gb-qsfp28 line card featuring 18 ports of QSFP28
• Nokia 7250 IXR-R6 Interconnect Router
  • m6-10g-sfp++1-100g-qsfp28 line cards featuring 6 ports of SFP+ and 1 port of QSFP28
• Nokia 7210 SAS-Sx Service Access System
  • Fixed router featuring 64 ports of SFP+ and 4 ports of QSFP28
• Nokia Service Router Operating System (SR OS) versions 21.7.R1 and 21.3.R2
